Data Transformations

Based on the Data explorations carried out in previous step, we are now ready to apply transformations to the data. Amazon SageMaker Data Wrangler provides numerous ML data transforms to streamline cleaning, transforming, and featurizing your data. When you add a transform, it adds a step to the data flow. Each transform you add modifies your dataset and produces a new dataframe. All subsequent transforms apply to the resulting dataframe.

Data Wrangler includes built-in transforms, which you can use to transform columns without any code. You can also add custom transformations using PySpark, Pandas, and PySpark SQL. Some transforms operate in place, while others create a new output column in your dataset.

In order to apply an action on the imported data, select the Add Transform option on right clicking the the Data Types block. In the displayed window, select Add Steps to display Add Transform window.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/add-transform.png

Drop Columns

Now we will drop columns based on the analyses we performed in the previous section.

  • based on target leakage : drop reservation_status

  • redundant columns : drop columns that are redundant - days_in_waiting_list, hotel, reserved_room_type, arrival_date_month, reservation_status_date, babies and arrival_date_day_of_month

  • based on linear correlation results : drop columns arrival_date_week_number, arrival_date_year as correlation values for these feature (column) pairs are greater than the recommended threshold of 0.90.

  • based on non-linear correlation results: drop reservation_status. This column was already marked to be dropped based on Target leakage analysis.

we can drop all these columns in one go. To drop columns, choose Manage columns transform from the Add Transform window. Then select the Drop column option from Manage columns transform.

Please select the the column names we want to drop as shown in the image below and hit Preview.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/drop-columns.png

If the Preview is OK, click Add to add the transform in the data flow.

Further, based on the multi-colinearity analysis results, we can also drop the columns adults and agent for whom the variance inflation factor scores are greater than 5. Please select the the column names we want to drop and hit Preview.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/drop-more-cols.png

If the Preview is OK, click Add to add the transform in the data flow.

Drop Duplicate Rows

We should drop the duplicate rows that we identified based on the analysis we did in the previous section. To drop columns, choose Manage rows transform from the Add Transform window. Then select the Drop duplicates option from Manage rows transform and hit Preview.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/drop-duplicates.png

If the Preview is OK, click Add to add the transform in the data flow.

Handle Outliers

An outlier can cause serious problems in statistical analysis. Machine learning models are sensitive to the distribution and range of feature values. Outliers, or rare values, can negatively impact model accuracy and lead to longer training times. When you define a Handle outliers transform step, the statistics used to detect outliers are generated on the data available in Data Wrangler when defining this step. These same statistics are used when running a Data Wrangler job.

To handle outliers, choose Handle outliers transform from the Add Transform window.
Please select the following parameters and hit Preview.

  • Transform: Standard deviation numeric outliers

  • Fix method : Remove

  • Standard deviations: 4

  • Input columns: lead_time,stays_in_weekend_nights, stays_in_weekday_nights, is_repeated_guest, prev_cancellations, prev_bookings_not_canceled, booking_changes, adr, total_of_specical_requests, required_car_parking_spaces,

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/handle-outliers.png

If the Preview is OK, click Add to add the transform in the data flow.

Handle Missing Values

To handle outliers, choose Handle missing values transform from the Add Transform window. We can do the following to handle missing values in our feature columns using Data Wrangler.

  • Missing values in Children column : Majority of the visitors were not accompanied by children and hence missing data can be replaced by number of children = 0.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/fill-missing-children-val.png

Please hit Preview to look at the transform preview, and if it is OK, click Add to add the transform in the data flow.

  • Missing values in Country column Iterating through the country column reveals that most of the clients are from Europe. Therefore, all the missing values in the country column are replaced with the country of maximum occurrence - Portugal (PRT). Fill missing country column with PRT based on value counts

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/fill-missing-country-val.png

Please hit Preview to look at the transform preview, and if it is OK, click Add to add the transform in the data flow.

  • Custom Transform - Meal type has Undefined category, changing the Undefined value to the most used which is BB by implementing a custom pyspark transform with two simple lines of code. This can be done by choosing Custom transform transform from the Add Transform window. Specify the name of the transform, and paste following code in the transform as shown in figure below.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/custom-pyspark-code.png
from pyspark.sql.functions import when

df = df.withColumn('meal', when(df.meal == 'Undefined', 'BB').otherwise(df.meal))

Please hit Preview to look at the transform preview, and if it is OK, click Add to add the transform in the data flow.

### Numeric Normalization Normalization is a scaling technique in which values are shifted and rescaled so that they end up ranging between 0 and 1. It is also known as Min-Max scaling. Standardization is another scaling technique where the values are centered around the mean with a unit standard deviation. This means that the mean of the attribute becomes zero and the resultant distribution has a unit standard deviation.

For our example use case, let’s normalize the numeric feature columns to a standard scale [0,1].

From Data Wrangler’s list of pre-built transforms, choose Process numeric. Please select the following parameters and hit Preview.

  • Transform: Scale values

  • Scalar : Min-max scalar

  • Min: 0

  • Max: 1

  • Input columns: lead_time,stays_in_weekend_nights, stays_in_weekday_nights, is_repeated_guest, prev_cancellations, prev_bookings_not_canceled, booking_changes, adr, total_of_specical_requests, required_car_parking_spaces

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/min-max.png

If the Preview is OK, click Add to add the transform in the data flow.

Handle Categorical Data

Categorical data is usually composed of a finite number of categories, where each category is represented with a string. Encoding categorical data is the process of creating a numerical representation for categories. With Data Wrangler, we can select Ordinal encode to encode categories into an integer between 0 and the total number of categories in the Input column you select. Select one-hot encoding or use similarity encoding when you have a large number of categorical variables and Noisy data.

From Data Wrangler’s list of pre-built transforms, choose Encode Categorical. Please select the following parameters and hit Preview.
- Transform: One-hot encode - Invalid handling strategy : Keep - Output style: Columns - Max: 1
- Input columns: meal, is_repeated_guest, market_segment, assigned_room_type, deposit_type, customer_type
https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/categorical-one-hot.png

If the Preview is OK, click Add to add the transform in the data flow.

Balancing the target variable

DataWrangler also helps to balance the target variable (column) for class imbalance. Let’s presume the following for the negative and positive cases.

is_canceled = 0 (negative case)
is_canceled = 1 (positive case)

In Data Wrangler, we can handle class imbalance using 3 different techniques.

- Random Undersample
- Random Oversample
- SMOTE
From the Data Wrangler’s transform pane, choose Balance Data as the transform. Please select the following parameters as shown in image below and hit Preview.
- Target column: is_canceled - Desiered ratio : 1 - Transform: Random oversample
https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/random-oversample.png

If the Preview is OK, click Add to add the transform in the data flow.

The state of the classes before and after balancing is as follows:

The ratio of positive to negative case = ~0.38

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/class-before-balance.png

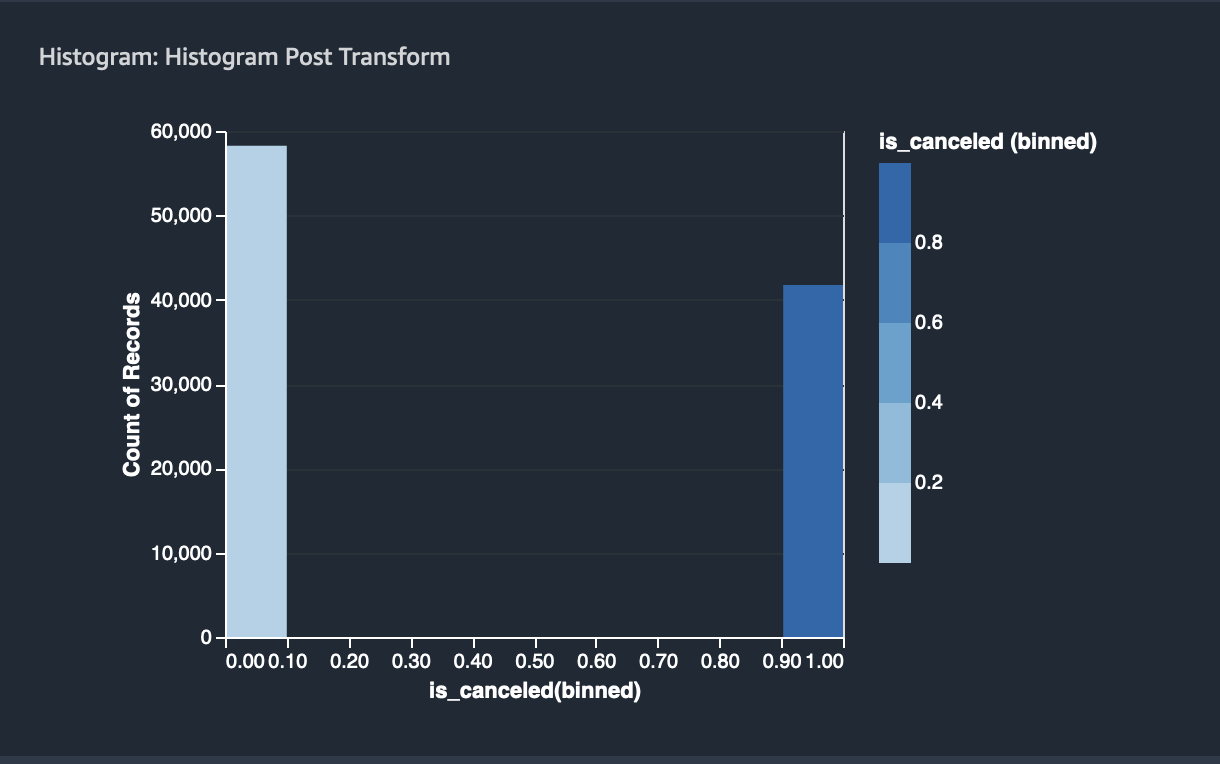

After balancing, the ratio is 1 post-balance

Quick Model

Given, we have applied most of the needed transformations on our feature columns, we can now create a Quick Model again using the transformed features to identify the predictive ability of our features and take a look at their attribution towards prediction.

It is a good practice to run a Quick Model everytime we make a set of feature transforms. Previously, we ran a Quick Model analysis using the raw features. The results of this previous run was mostly incorrect and misleading, given, we haven’t fixed most of the correlation and other issues with our dataset.

The below figure shows the results of the newly run Quick Model created using the transformed features. As you can see, the Quick Model achieved an F1 score of 62% on the test data. The top 5 most contributing features towards this score are as follows which is different from what we see previously.

lead_time
country
customer_type_Transient
required_car_parking_spaces
booking_changes

Craete a quick model, similar to one we created in the Exploratory Data Analysis step.

https://s3.amazonaws.com/sagemaker-example-files-prod-us-east-1/images/sagemaker-datawrangler/tabular-dataflow/quick-model-post.png

Compare the model with the one created in Exploratory Data Analysis step.

Next Steps

As a next step, we will export the transformed data for further use. Please follow steps for Data Export.
